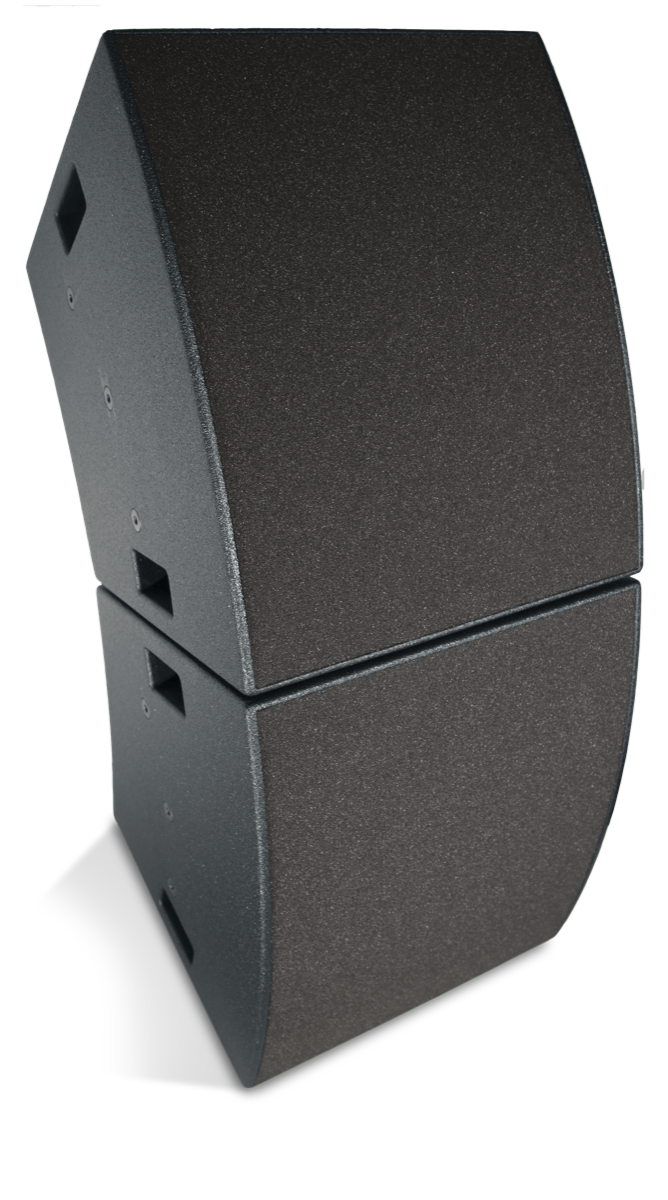

Cinema Sound Research | Longbow Series | CiT65-600 | Screen Channel Long Throw System

Stacks Image 23

Type / Design:
Frequency response:
Phase Response:
Acoustic Center:
Power handling capacity:

2x2-way full-range system, horn loaded
80Hz – 18kHz ( -3,0 / +2dB)
80Hz – 18kHz (+- 45°)
The exact middle of each module
1300W (AES norm)
2600W program power,
5200W peak power

Impedance nominal:
Sensitivity:
Program SPL:
Peak SPL:
Dispersion:
Components:


2x 8Ω
105,5dB (2,83V / 8Ω − 10m)
>139,0dB (2600W – 10m - 5% THD)
>142dB (5200W - 10m)
110° x 60° (horizontal x vertical)
12 x 6,5” mid-bass cone driver, high power magnet system, low power compression;
6 x 1.5” neodymium HF driver; 3” voice coil

Cabinet:

Colours:

Weight:
Dimensions:
Notes:


Resonance free
2x shell type handle on sides
Basalt grey, RAL 7012, fine structure varnish
(Other Colours or surface treatments on request)
79 kg
1220 x 500 x 455 (mm), H x W x D
To be used with the Cinema Sound Research Control Electronics Unit only. 2Ch needed
