Longbow Series

CiT65-600

Screen Chanel Long Throw System

The CiT65-600 with its dedicated Control Electronics System is a linear high power screen channel loudspeaker system. It is appropriate for very large or long-shaped movie theatres and open air events with up to 500 seats (up to 9.000 m3 room volume).

The 2x2-way system is optimized for operation “behind per- forated screens” with extreme flat amplitude and phase re- sponse and maximum radiation impedance whilst its super wide constant-Q horn geometry is designed for the optimum wide coverage needed in cinemas. Those features simplify the room/speaker-equalisation a lot.The extra wide horizontal dis- persion of 110° guarantees an enormously wide stereophonic image.

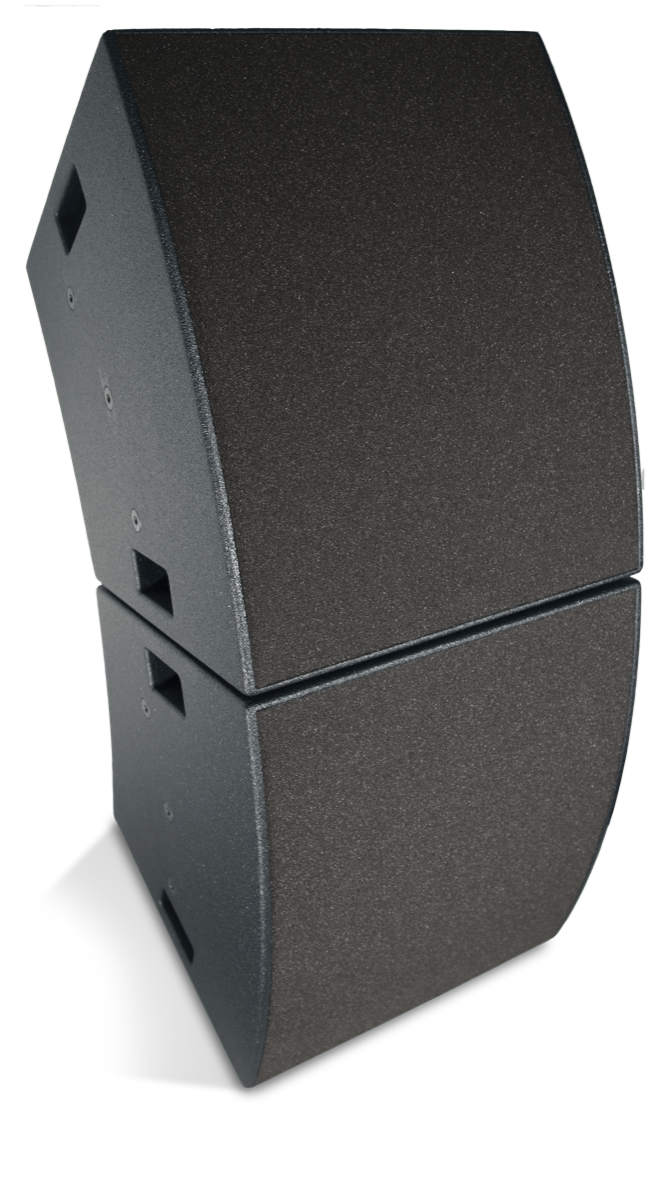

Two modules with a customizable stacking angle enable cont- rolled radiation of sound to mid and far field. This two module system needs two amplifier channels.

The optional semi cardanic mounting hardware ensures pin- point alignment of the screen speakers. The systems can be installed independently from any screen scaffolding.
