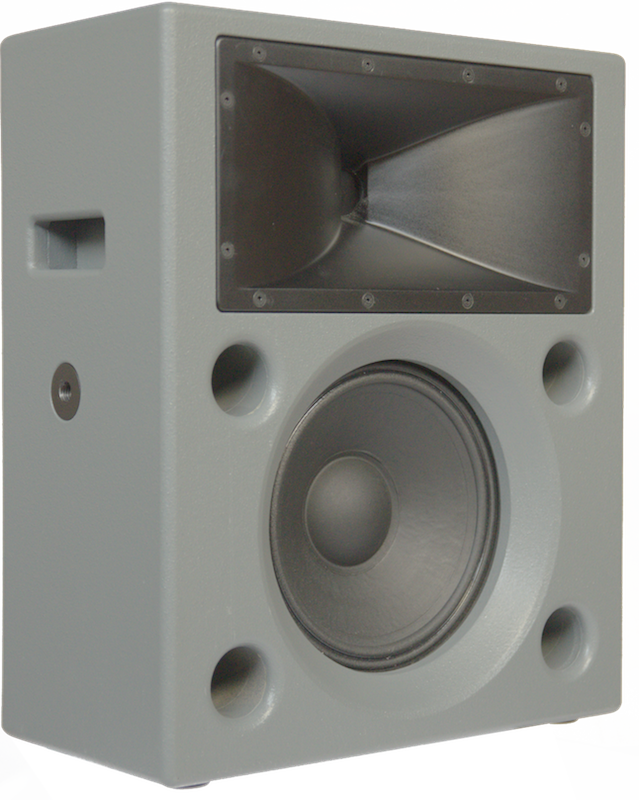

Cinema Sound Research | Challenger Series | CiT10-300

Stacks Image 23

Type / Design:
Frequency response:
Phase Frequency Response:
Power handling capacity:

2-way full-range system, vented, horn loaded
43,5Hz – 18kHz ( -3,0 / +2,5dB)
40Hz – 18kHz (+- 45°)
300W IEC norm 268-5 (36dBu)
600W program power,
850W peak power

Impedance nominal:
Sensitivity:
Program SPL:
Peak SPL:
Dispersion:
Components:


8Ω nominal; 6,4Ω Rdc
96,5dB (2,83V / 8Ω − 1m)
121,0dB (800W – 1m)
124dB (850W - 1m)
110° x 60° (horizontal x vertical)
1 x 10” mid-bass cone driver, 2,5” voice coil,
high power magnet system, low power compression;
1 x 1,4” Neodymium HF driver, 2,5” voice coil

Connectors:
Fittings:

Cabinet:

Front Cover:
Colours:

Weight:
Dimensions:
Notes:

WAGO-Clamp
4x M10 (backside)
2x M16 (Left and Right Side)
Resonance free with reinforce framing
1x shell type handle on sides
optional
Basalt grey, RAL 7012, fine structure varnish
(Other Colours or surface treatments on request)
22 kg
520 x 436 x 295 (mm), H x W x D
To be used with the Cinema Sound Research Control Electronics Unit only.

Cinema Sound Research | Challenger Series | CiM10-300

Type / Design:
Frequency response:
Phase Frequency Response:
Power handling capacity:

low-mid-range system, vented enclosure
43,5Hz – 200Hz ( -3,0 / +2,5dB)
40Hz – 200Hz (+- 45°)
300W IEC norm 268-5 (36dBu)
600W program power,
850W peak power

Impedance nominal:
Sensitivity:
Program SPL:
Peak SPL:
Components:


8Ω nominal; 6,0Ω Rdc
96,5dB (2,83V / 8Ω − 1m)
121,0dB (600W – 1m)
124 dB (850W - 1m)
1 x 10” mid-bass cone driver, 2,5” voice coil,
high power magnet system, low power compression

Connectors:
Fittings:

Cabinet:

Colours:

Weight:
Dimensions:
Notes:

WAGO-Clamp
4x M10 (backside)
2x M16 (Left and Right Side)
Resonance free with reinforce framing
1x shell type handle on sides
Basalt grey, RAL 7012, fine structure varnish
(Other Colours or surface treatments on request)
30,1 kg
520 x 436 x 295 (mm), H x W x D
To be used with the Cinema Sound Research Control Electronics Unit only.

Cinema Sound Research | Challenger Series | CiW10-300

Type / Design:

Frequency response:
Phase Frequency Response:
Power handling capacity:

low-mid-range system, vented, horn loaded, passive crossover, baffle tilt (-20°)
43,5Hz – 18kHz ( -3,0 / +2,5dB)
40Hz – 18kHz (+- 45°)
300W IEC norm 268-5 (36dBu)
600W program power,
850W peak power

Impedance nominal:
Sensitivity:
Program SPL:
Peak SPL:
Dispersion:
Components:


8Ω nominal; 6,4Ω Rdc
96,5dB (2,83V / 8Ω − 1m)
121,0dB (800W – 1m)
124dB (850W - 1m)
110° x 60° (horizontal x vertical)
1 x 10” mid-bass cone driver, 2,5” voice coil,
high power magnet system, low power compression;
1 x 1,4” Neodymium HF driver, 2,5” voice coil

Connectors:
Fittings:
Cabinet:
Front Cover:
Colours:

Weight:
Dimensions:
Notes:

WAGO-Clamp (on top)
4x M8 (backside) for two mounting plates
Resonance free with reinforce framing
optional
Basalt grey, RAL 7012, fine structure varnish
(Other Colours or surface treatments on request)
34,2 kg
565 x 436 x 364/178 (mm), H x W x D (top/bottom)
To be used with the Cinema Sound Research Control Electronics Unit only.
