Challenger Series


CiT10-300

Screen Chanel System

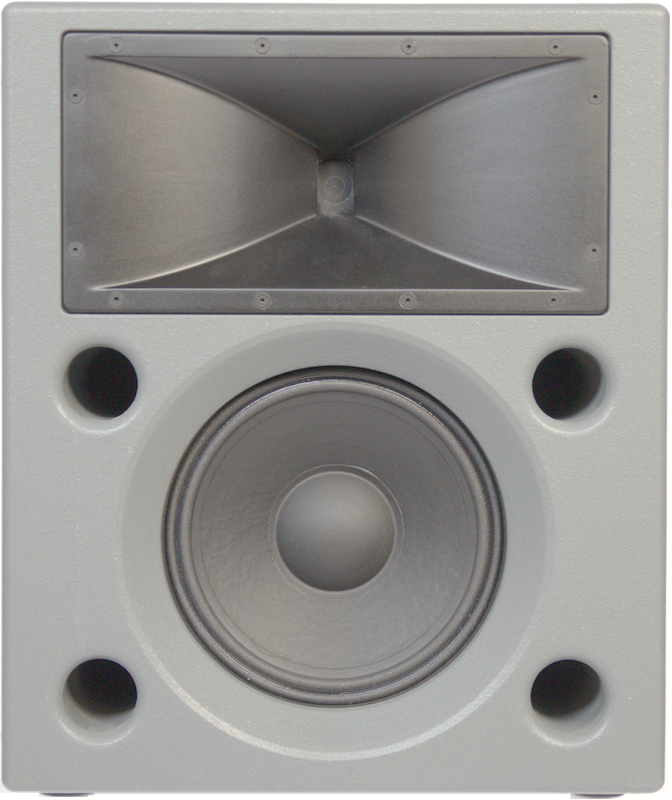

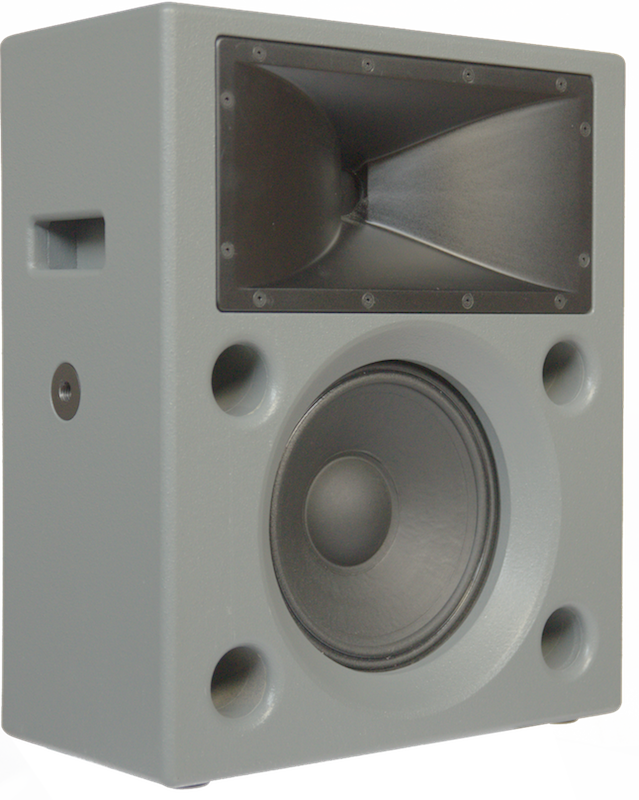

The CiT10-300 with its dedicated Control Electronics System is a linear high power screen channel loudspeaker system. It is appropriate for movie theatres and dubbing stages with up to 100 seats (up to 1.000 m3 room volume).

Accompanied with the CiM10-300 low-mid extension (then cal- led CiT10-300-EXT) it works perfect for up to 150 seats or 1.500 m3. For larger venues there is the Double Extended System with two low-mid-extensions

The 2-way system is optimized for operation “behind per- forated screens” with extreme flat amplitude and phase response and maximum radiation impedance whilst its super wide constant-Q horn geometry is designed for the optimum wide coverage needed in cinemas. Those features simplify the room/speaker-equalisation a lot.The extra wide horizontal dis- persion of 110° guarantees an enormously wide stereophonic image.

The point source design features an accurate in-phase crossover conception giving exceptional fidelity with no tonal coloration. The dynamic range combined with the low distortion of the system is perfect for the all-over digital signal flow in modern digital cinema environments and re-recording stages, production and postproduction studios.

The optional semi cardanic mounting hardware ensures pin- point alignment of the screen speakers. The systems can be installed independently from any screen scaffolding.


CiM10-300

Low-Mid-Extension

The CiM10-300 with its dedicated Control Electronics System is a linear high power low-mid extension. It is only designated for extending the CiT10-300 screen channel loudspeaker system for larger venues. The extended CiT10-300 / CiM10-300 combination adds 6 dB more headroom to the low end. It works perfect for movie theatres and dubbing stages up to 150 seats (up to 1.500 m3 room volume).

The system is optimized for an extreme flat amplitude and phase response and maximum radiation impedance, tightly stacked with the CiT10-300 screen channel system. The crossover point is realized without any interference with the CiT10- 300.

The optional semi cardanic mounting hardware ensures pin- point alignment of the
screen speakers. The systems can be installed independently from any screen scaffolding.

CiW10-300

Surround Channel System

The CiW10-300 with its dedicated Control Electronics System is a linear high power surround channel loudspeaker system. It is appropriate for movie theatres and dubbing stages.

This is a dedicated full-range surround system! Unlike its com- petitors it has the same power and bandwidth as the boxer series screen channel systems.

The 2-way system is optimized for a super wide dispersion to minimize the necessary amount of surround speakers in cinemas. This technology reduces the destructive acoustical interaction of such uncoupled point source arrays along the walls to an inaudible minimum.
