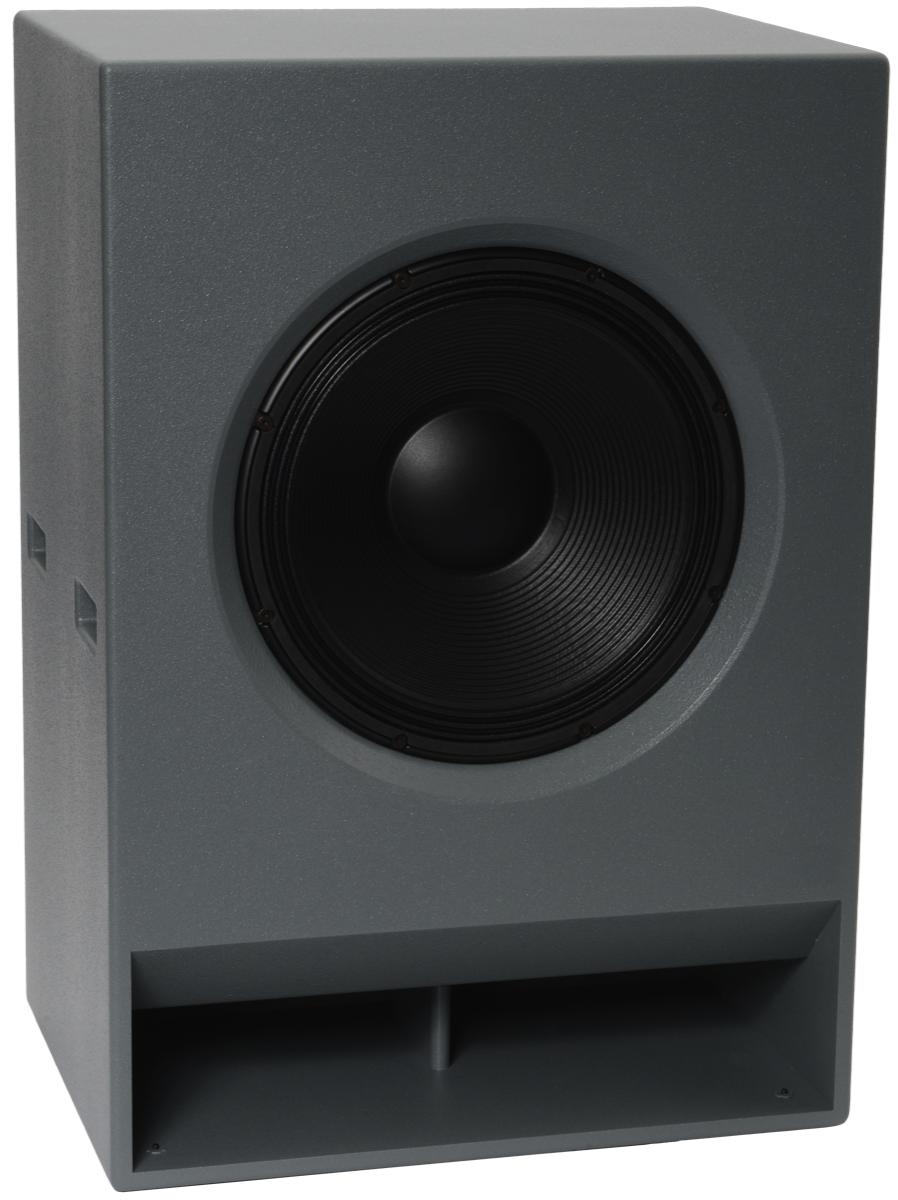

Cinema Sound Research | LFE Series | CiS18-300 | LFE System
Type / Design:
Frequency response:
Phase Frequency Response:
Power handling capacity:
hybrid-horn loaded sub-low system, exponential ported
25Hz – 150Hz ( -3,0 / +2,5dB)
25Hz – 150Hz (+- 45°)
1500W IEC norm 268-5 (37,5dBu)
3000W program power,
4500W peak power
25Hz – 150Hz ( -3,0 / +2,5dB)
25Hz – 150Hz (+- 45°)
1500W IEC norm 268-5 (37,5dBu)
3000W program power,
4500W peak power
Impedance nominal:
Sensitivity:
Program SPL:
Peak SPL:
Components:
8Ω nominal; 5,5Ω Rdc
96,0dB (2,83V / 8Ω − 1m)
129,0dB (3000W – 1m)
>130dB (4500W - 1m)
1 x 18” long excursion woofer, 4” voice coil
fibre reinforced cone assembly,
maximum excursion (before damage): 50mm
maximum linear excursion: +-11,5mm
96,0dB (2,83V / 8Ω − 1m)
129,0dB (3000W – 1m)
>130dB (4500W - 1m)
1 x 18” long excursion woofer, 4” voice coil
fibre reinforced cone assembly,
maximum excursion (before damage): 50mm
maximum linear excursion: +-11,5mm
Connectors:
Cabinet:
Colours:
Weight:
Dimensions:
Notes:
WAGO-Clamp
Resonance free with reinforce framing
2x shell type handle each side wall
Basalt grey, RAL 7012, fine structure varnish
(Other Colours or surface treatments on request)
65 kg
1000 x 700 x 520 (mm), H x W x D
To be used with the Cinema Sound Research Control Electronics Unit only.
Resonance free with reinforce framing
2x shell type handle each side wall
Basalt grey, RAL 7012, fine structure varnish
(Other Colours or surface treatments on request)
65 kg
1000 x 700 x 520 (mm), H x W x D
To be used with the Cinema Sound Research Control Electronics Unit only.
