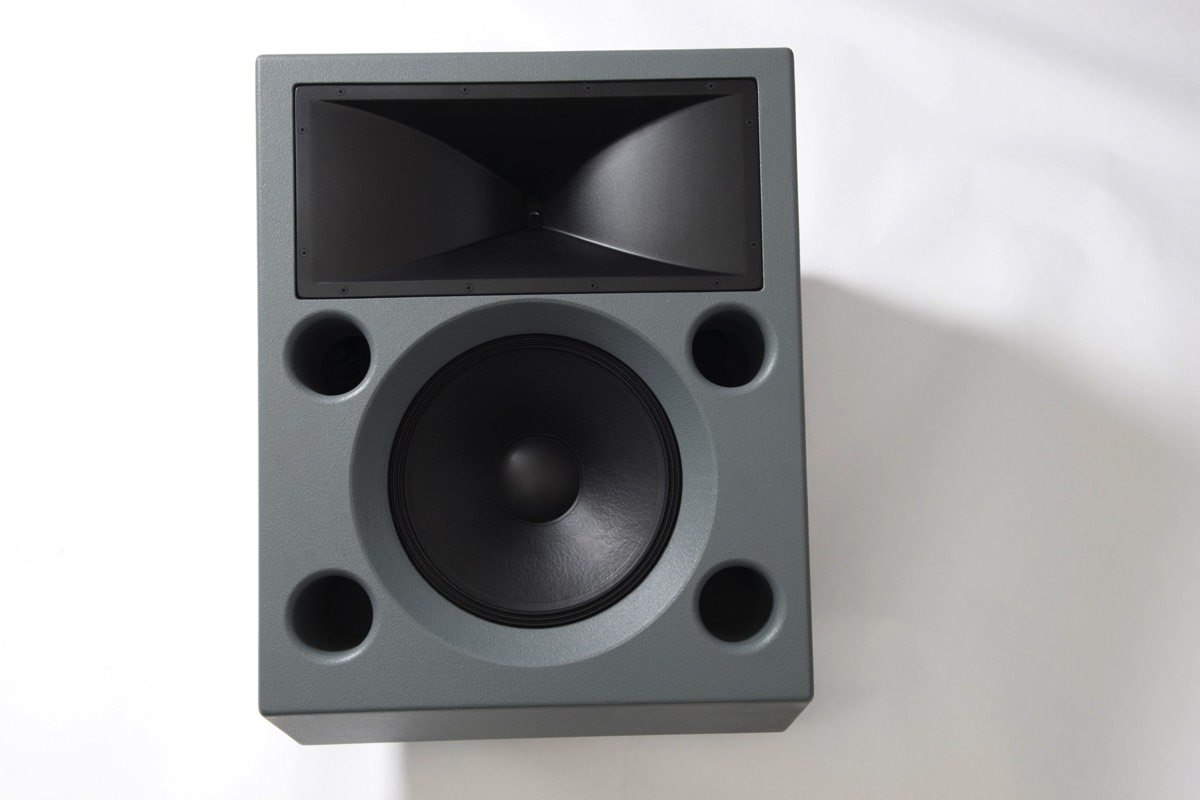

Cinema Sound Research | Boxer Series | CiT15-300 | Screen Channel System
Type / Design:
Frequency response:
Phase Frequency Response:
Power handling capacity:
2-way full-range system, vented, horn loaded
40Hz – 18kHz ( -3,0 / +2,5dB)
40Hz – 18kHz (+- 45°)
400W IEC norm 268-5 (37,5dBu)
800W program power,
1150W peak power
40Hz – 18kHz ( -3,0 / +2,5dB)
40Hz – 18kHz (+- 45°)
400W IEC norm 268-5 (37,5dBu)
800W program power,
1150W peak power
Impedance nominal:
Sensitivity:
Program SPL:
Peak SPL:
Dispersion:
Components:
8Ω nominal; 6,0Ω Rdc
99,5dB (2,83V / 8Ω − 1m)
127,0dB (800W – 1m)
130dB (1150W - 1m)
110° x 60° (horizontal x vertical)
1 x 15” mid-bass cone driver, 3” Voice Coil high power magnet system, low power compression;
1 x 1,5” Neodymium HF driver, 3” voice coil
99,5dB (2,83V / 8Ω − 1m)
127,0dB (800W – 1m)
130dB (1150W - 1m)
110° x 60° (horizontal x vertical)
1 x 15” mid-bass cone driver, 3” Voice Coil high power magnet system, low power compression;
1 x 1,5” Neodymium HF driver, 3” voice coil
Connectors:
Fittings:
Cabinet:
Colours:
Weight:
Dimensions:
Notes:
WAGO-Clamp (on the top)
4x M10 (backside)
2x M20 (Left and Right Side)
Resonance free with reinforce framing
1x shell type handle on sides
Basalt grey, RAL 7012, fine structure varnish
(Other Colours or surface treatments on request)
44 kg
725 x 636 x 440 (mm), H x W x D
To be used with the Cinema Sound Research Control Electronics Unit only.
4x M10 (backside)
2x M20 (Left and Right Side)
Resonance free with reinforce framing
1x shell type handle on sides
Basalt grey, RAL 7012, fine structure varnish
(Other Colours or surface treatments on request)
44 kg
725 x 636 x 440 (mm), H x W x D
To be used with the Cinema Sound Research Control Electronics Unit only.
Cinema Sound Research | Boxer Series | CiM15-300 | Low-Mid-Extension
Type / Design:
Frequency response:
Phase Frequency Response:
Power handling capacity:
low-mid-range system, vented enclosure
40Hz – 200Hz ( -3,0 / +2,5dB)
40Hz – 200Hz (+- 45°)
400W IEC norm 268-5 (37,5dBu)
800W program power,
1150W peak power
40Hz – 200Hz ( -3,0 / +2,5dB)
40Hz – 200Hz (+- 45°)
400W IEC norm 268-5 (37,5dBu)
800W program power,
1150W peak power
Impedance nominal:
Sensitivity:
Program SPL:
Peak SPL:
Components:
8Ω nominal; 6,0Ω Rdc
99,5dB (2,83V / 8Ω − 1m)
127,0dB (800W – 1m)
130 dB (1150W - 1m)
1 x 15” mid-bass cone driver,
high power magnet system,
low power compression;
99,5dB (2,83V / 8Ω − 1m)
127,0dB (800W – 1m)
130 dB (1150W - 1m)
1 x 15” mid-bass cone driver,
high power magnet system,
low power compression;
Connectors:
Fittings:
Cabinet:
Colours:
Weight:
Dimensions:
Notes:
WAGO-Clamp (on the top)
4x M10 (backside)
2x M20 (Left and Right Side)
Resonance free with reinforce framing
1x shell type handle on sides
Basalt grey, RAL 7012, fine structure varnish
(Other Colours or surface treatments on request)
43,8 kg
725 x 636 x 440 (mm), H x W x D
To be used with the Cinema Sound Research Control Electronics Unit only.
4x M10 (backside)
2x M20 (Left and Right Side)
Resonance free with reinforce framing
1x shell type handle on sides
Basalt grey, RAL 7012, fine structure varnish
(Other Colours or surface treatments on request)
43,8 kg
725 x 636 x 440 (mm), H x W x D
To be used with the Cinema Sound Research Control Electronics Unit only.
Cinema Sound Research | Boxer Series | CiW15-300 | Surround Channel System
Type / Design:
Frequency response:
Phase Frequency Response:
Power handling capacity:
2-way full-range system, vented, horn loaded,
passive crossover, baffle tilt (-20°)
40Hz – 18kHz ( -3,0 / +2,5dB)
40Hz – 18kHz (+- 45°)
400W IEC norm 268-5 (37,5dBu)
800W program power,
1150W peak power
passive crossover, baffle tilt (-20°)
40Hz – 18kHz ( -3,0 / +2,5dB)
40Hz – 18kHz (+- 45°)
400W IEC norm 268-5 (37,5dBu)
800W program power,
1150W peak power
Impedance nominal:
Sensitivity:
Program SPL:
Program SPL:
Dispersion:
Components:
8Ω nominal; 6,0Ω Rdc
99,5dB (2,83V / 8Ω − 1m)
127,0dB (800W – 1m)
130 dB (1150W - 1m)
110° x 60° (horizontal x vertical)
1 x 15” mid-bass cone driver,
1 x 15” Mid-bass cone driver, 3” Voice Coil
high power magnet system, low power compression; 1 x 1,5” Neodymium HF driver, 3” voice coil
99,5dB (2,83V / 8Ω − 1m)
127,0dB (800W – 1m)
130 dB (1150W - 1m)
110° x 60° (horizontal x vertical)
1 x 15” mid-bass cone driver,
1 x 15” Mid-bass cone driver, 3” Voice Coil
high power magnet system, low power compression; 1 x 1,5” Neodymium HF driver, 3” voice coil
Connectors:
Fittings:
Cabinet:
Front Cover:
Colours:
Weight:
Dimensions:
Notes:
WAGO-Clamp (on the top)
4x M10 (backside) for two mounting plates
Resonance free with reinforce framing
option
Basalt grey, RAL 7012, fine structure varnish
45,8 kg
805 x 636 x 487/225 (mm), H x W x D (top/bottom)
To be used with the Cinema Sound Research Control Electronics Unit only.
4x M10 (backside) for two mounting plates
Resonance free with reinforce framing
option
Basalt grey, RAL 7012, fine structure varnish
45,8 kg
805 x 636 x 487/225 (mm), H x W x D (top/bottom)
To be used with the Cinema Sound Research Control Electronics Unit only.
